AIX Boiler Product Advantages

Technical Parameters Find the capacity of the coal fired steam boiler you want and check other parameters of the boiler as a reference.

Item\Type
Fixed Grate Manual Coal Fired Hot Water Boiler
Rated capacity MW
0.35
0.7
1.4
Rated working pressure MPa
0.7
0.7
0.7
Supply water temperature ℃
95
95
95
Return water temperature ℃
70
70
70
Heated surface area m²
radiation / convection
2.3/16.2
4.55/20.12
6.17/39.5
Suitable fuel type
Coal / Wood / Charcoal / Jute / Fabric, ect.
Boiler heat efficiency %
79.6
81
81.6
Fuel consumption kg/h
76
146
290
Effective area of grate m²
0.98
1.5
2.4
Transportation size of boiler mm
length
2970
3782
4900
width
1950
1800
2130
heigth
2660
2870
3222
Weight of larggest parts of boiler transportation (ton)
8.3
11
15.5
Notes: 1.This form is only for reference, if any changed, please refer to factory's technical documents.
2.The calorific value of fuel in this form is based on the calorific value as follows: biomass-18800KJ/kg.
No.
Item
Example/Issuer
Qty
Unit
1
Boiler Drawings
General Drawing, Boiler Proper Drawing, PID (Pipes, Instruments & Valves) Drawing, Foundation Drawing, Boiler Room Design Drawing.
1
Set
2
Boiler Quality Certificate
Issued by the boiler inspection department of China government.
1
Set
3
Certificate of Origin
Such as CO, Form E, Form F, Form A, etc.
1
Set
4
Boiler Thermodynamic Calculation Book
Issued by the boiler supplier.
1
Set
5
Boiler Strength Calculation Book
Issued by the boiler supplier.
1
Set
6
Installation & Operation Instruction
Issued by the boiler supplier.
1
Set

AIX Boiler Product Advantages

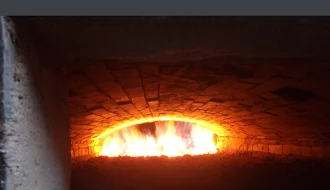

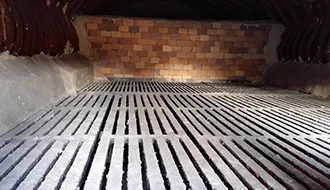

Fixed Grate Design
The boiler employs high-quality fixed grates engineered to withstand temperatures up to 1200°C. These grates offer exceptional durability, resisting deformation and damage, ensuring a prolonged service life.

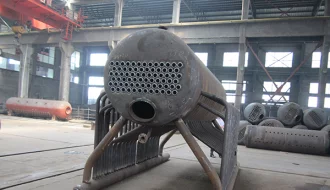

Heating Surface Efficiency
The Aix boiler is designed with a large-diameter drum and combustion chamber, paired with optimized radiation and convective heating surfaces. This configuration maximizes heat absorption, delivering ample output and superior thermal efficiency.

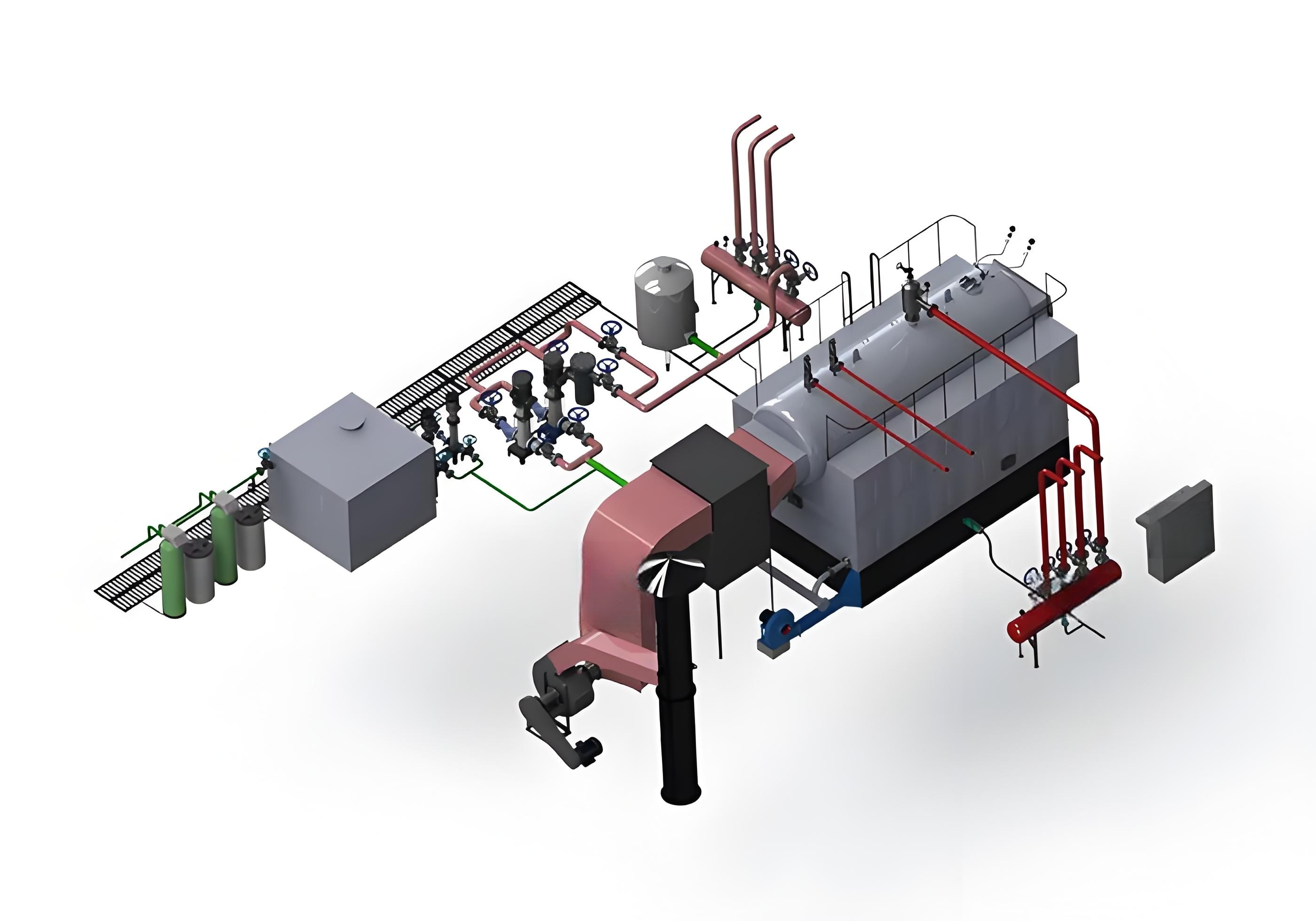

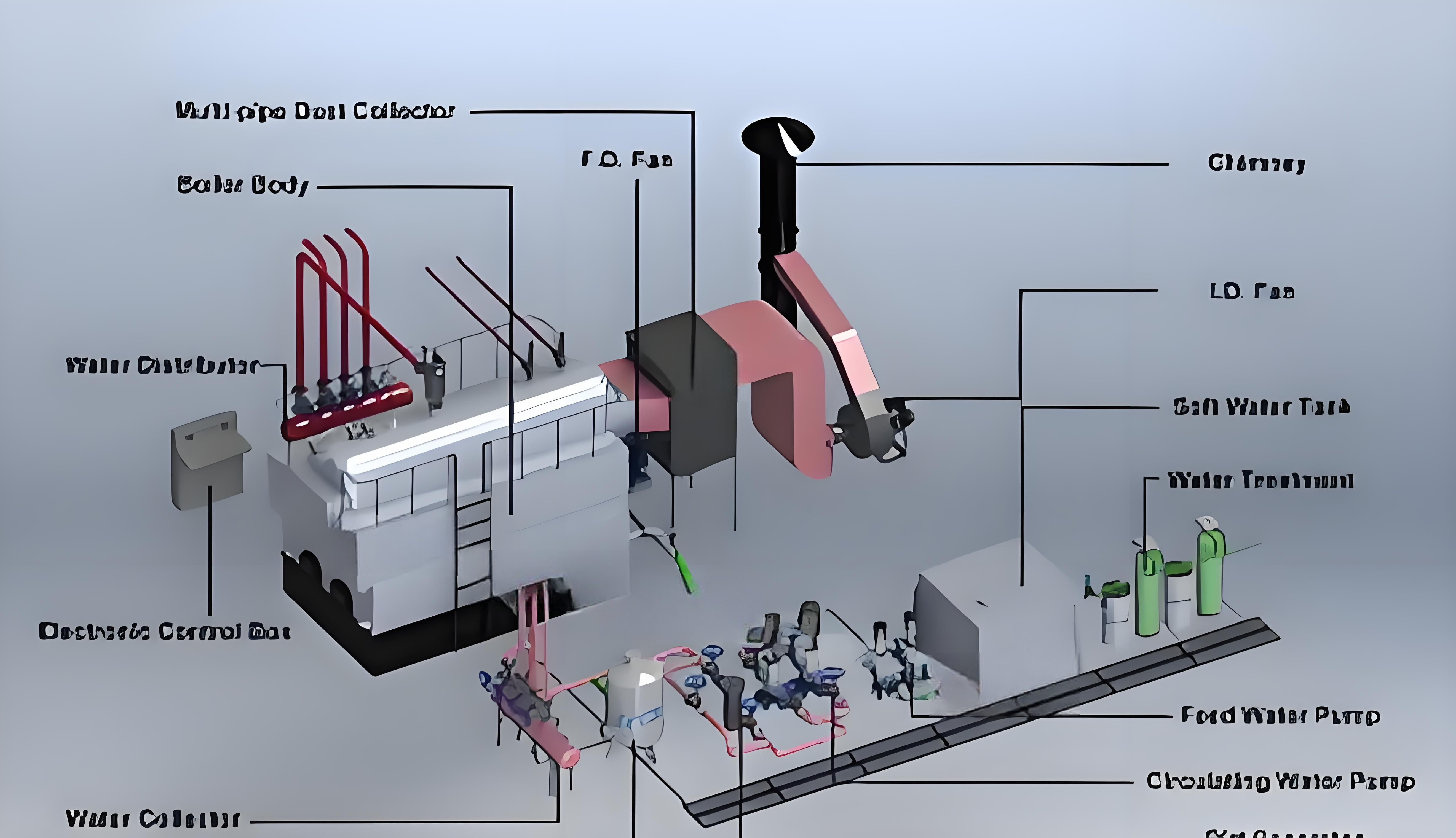

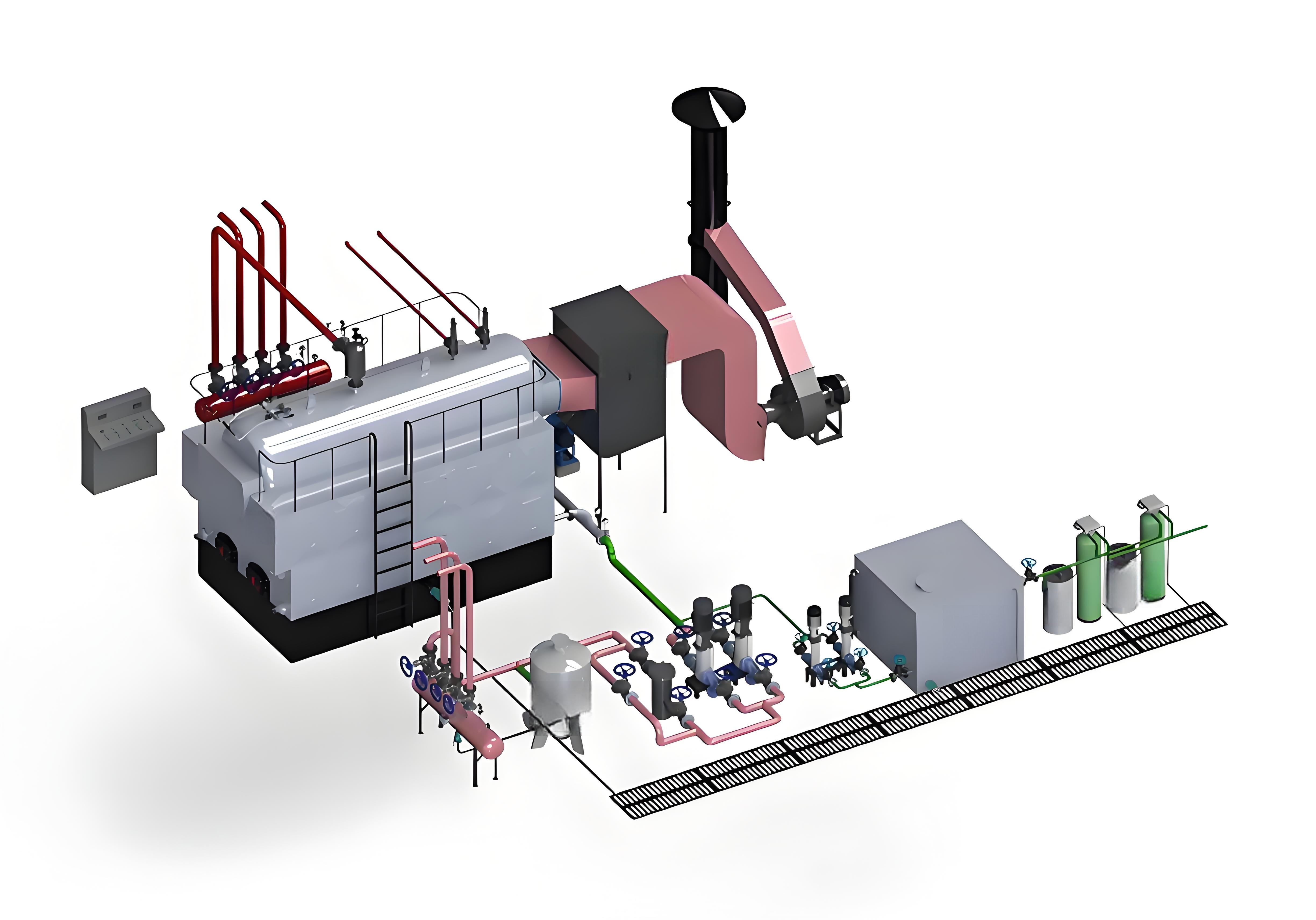

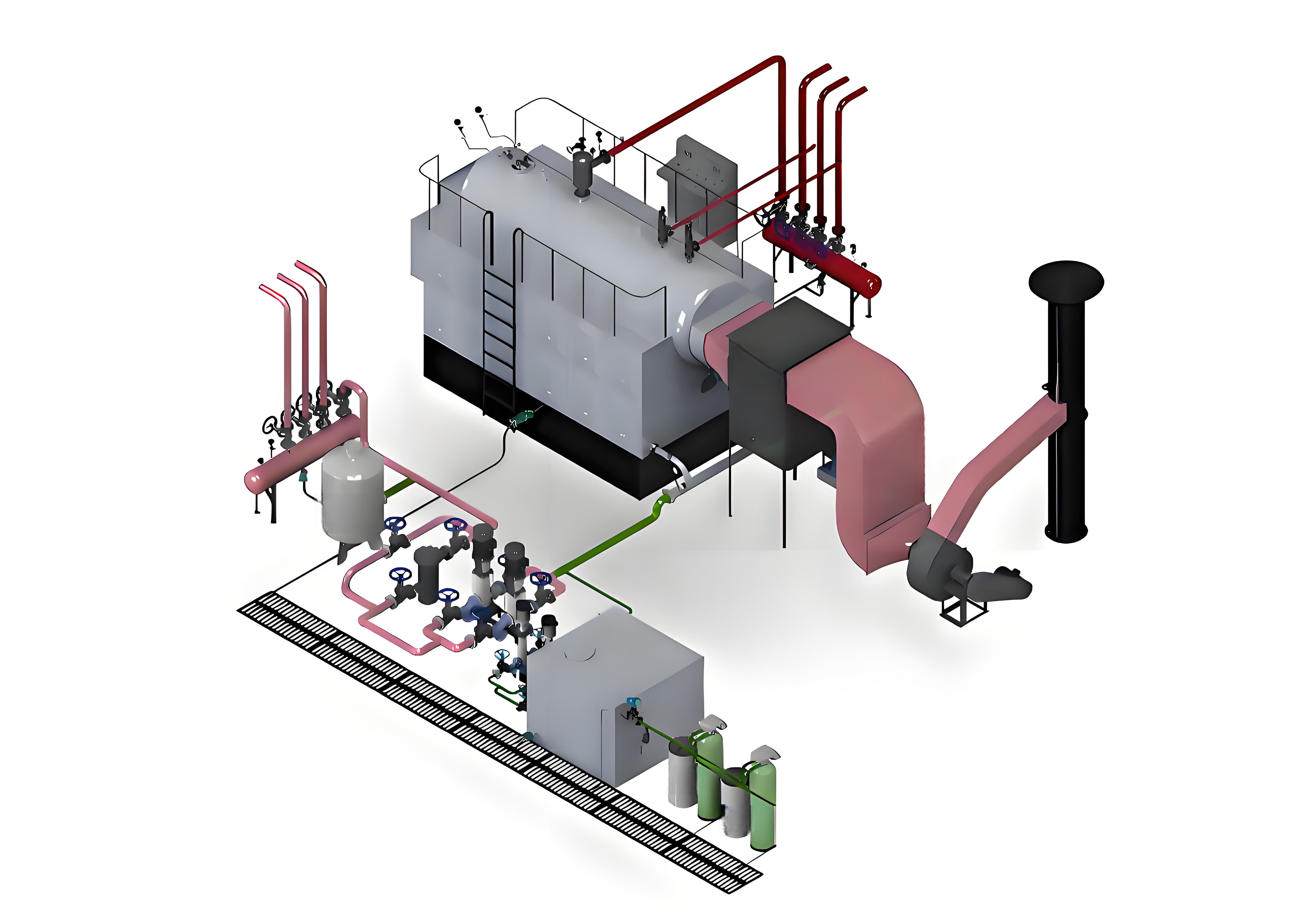

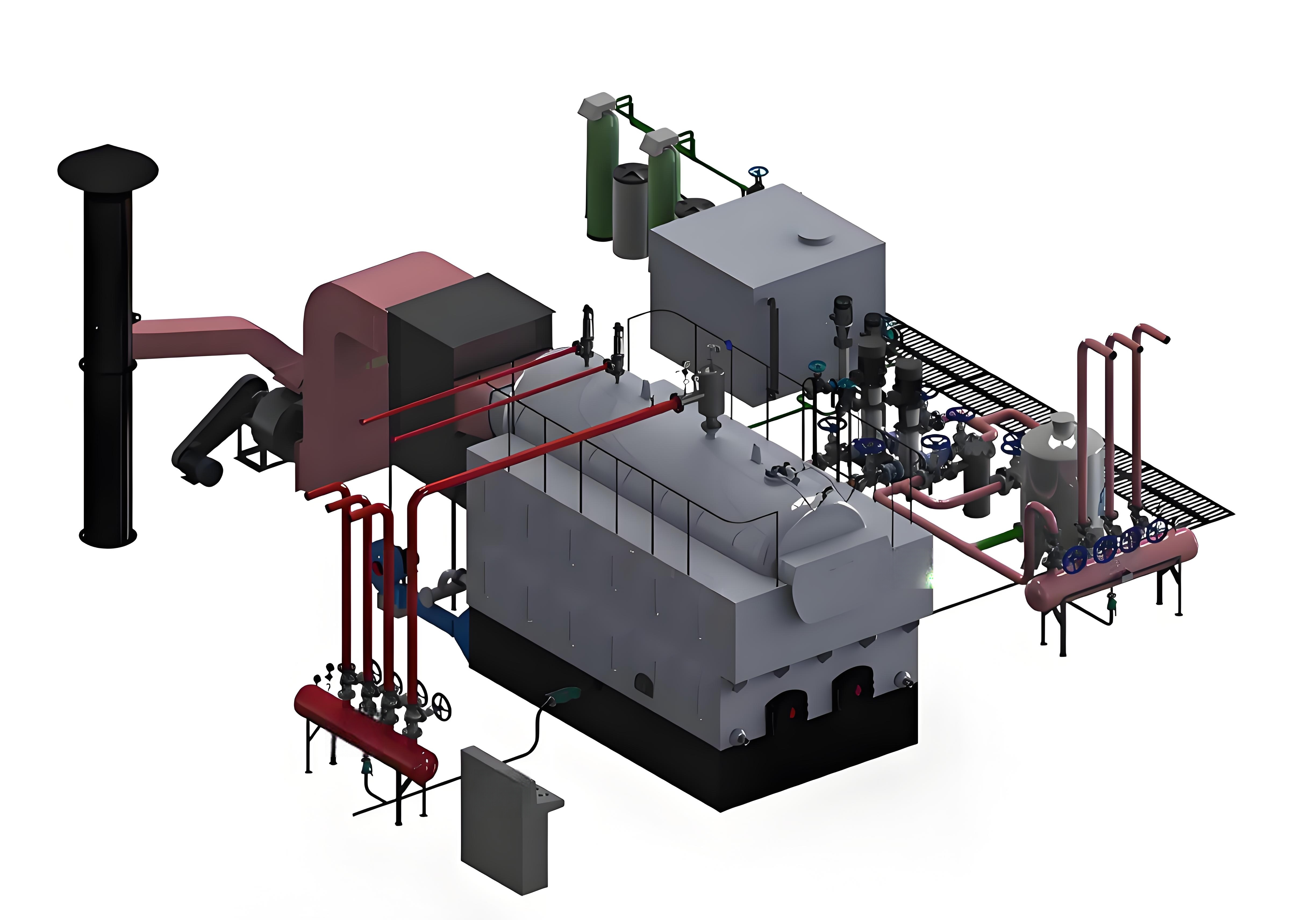

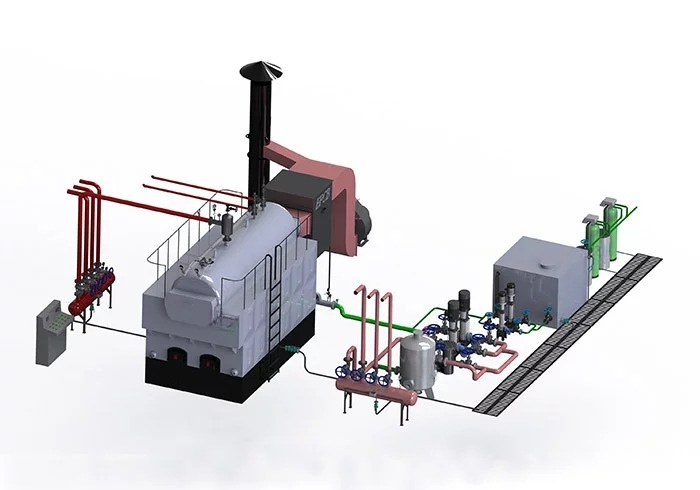

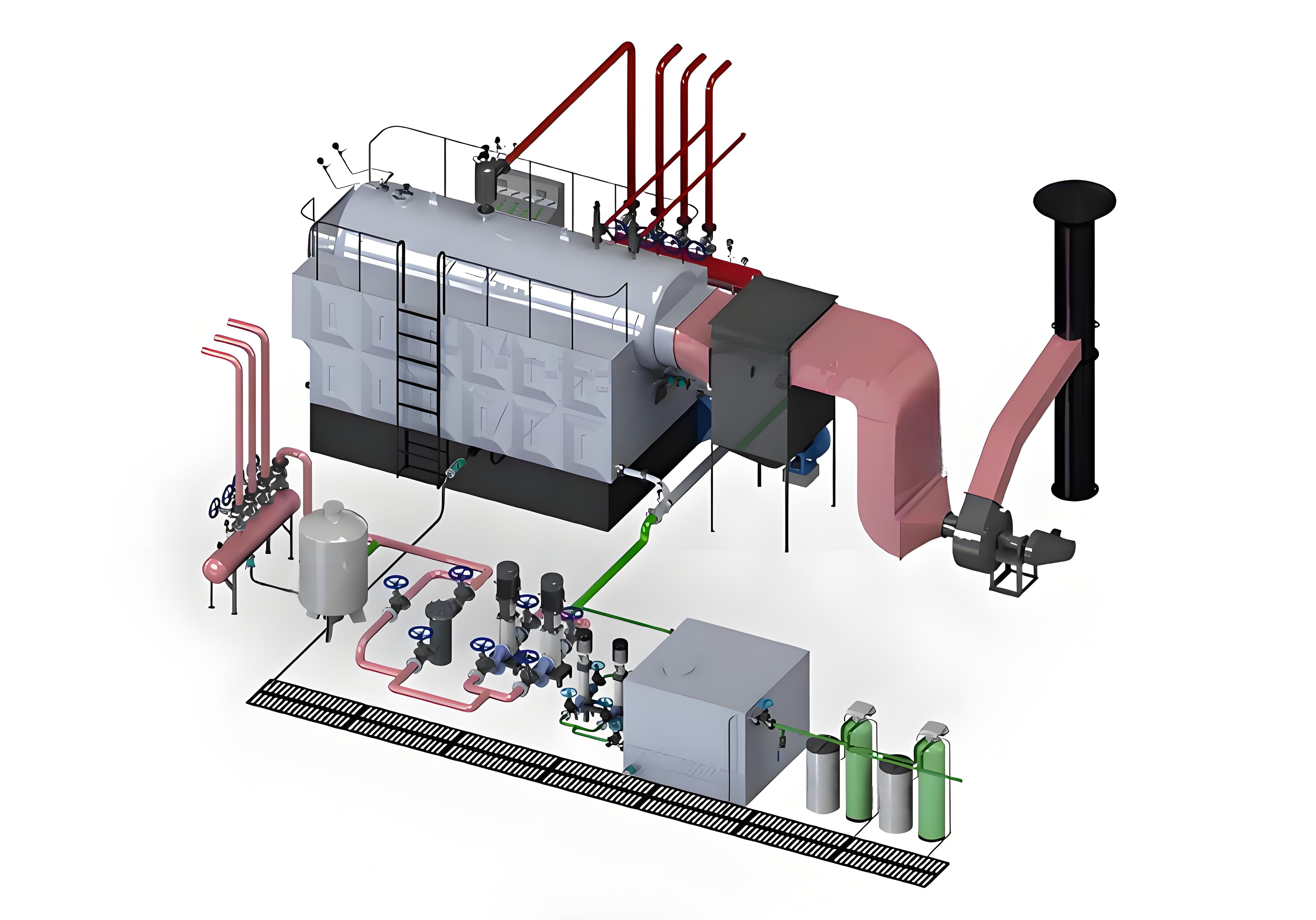

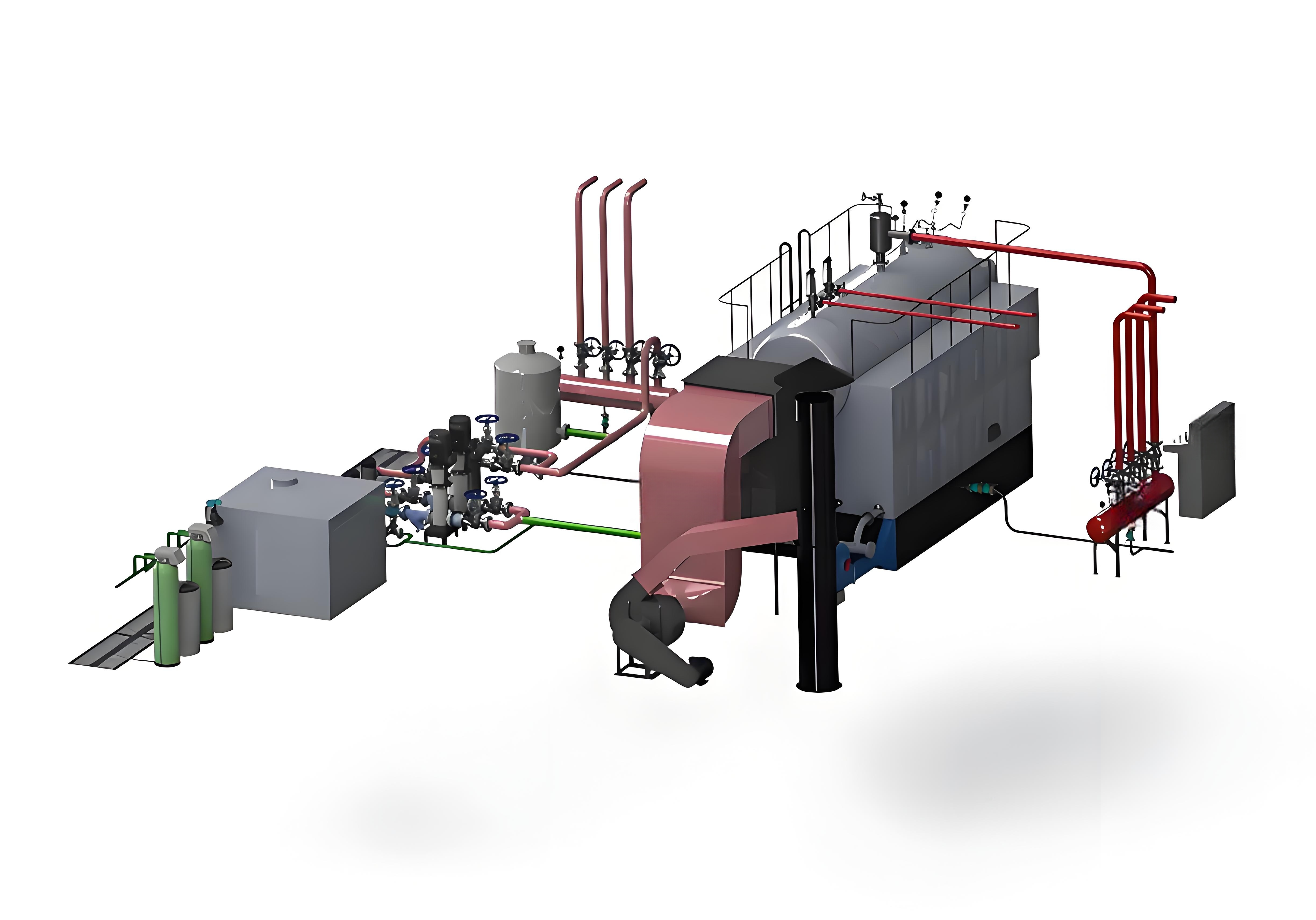

Boiler System Components
The Aix system includes premium auxiliary equipment such as water treatment units, pumps, dust collectors, and economizers. These components minimize environmental impact, extend boiler lifespan, and provide excellent economic benefits, earning widespread user approval.

Compact Boiler Body
The Aix boiler features a compact design, occupying significantly less space than boilers of equivalent capacity. This reduces boiler room investment costs by at least one-third, making it ideal for both new installations and retrofitting existing boiler rooms.
