AIX Boiler Product Advantages

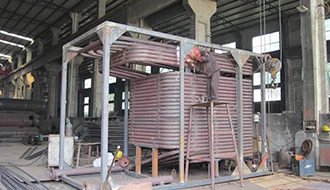

| Thermal Oil Boiler Body
The boiler body features a densely arranged coil structure and a large-diameter combustion chamber, ensuring ample space for fuel to burn completely. This design provides sufficient heating surface and guarantees high heat output. |

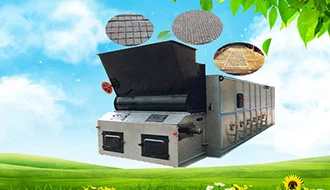

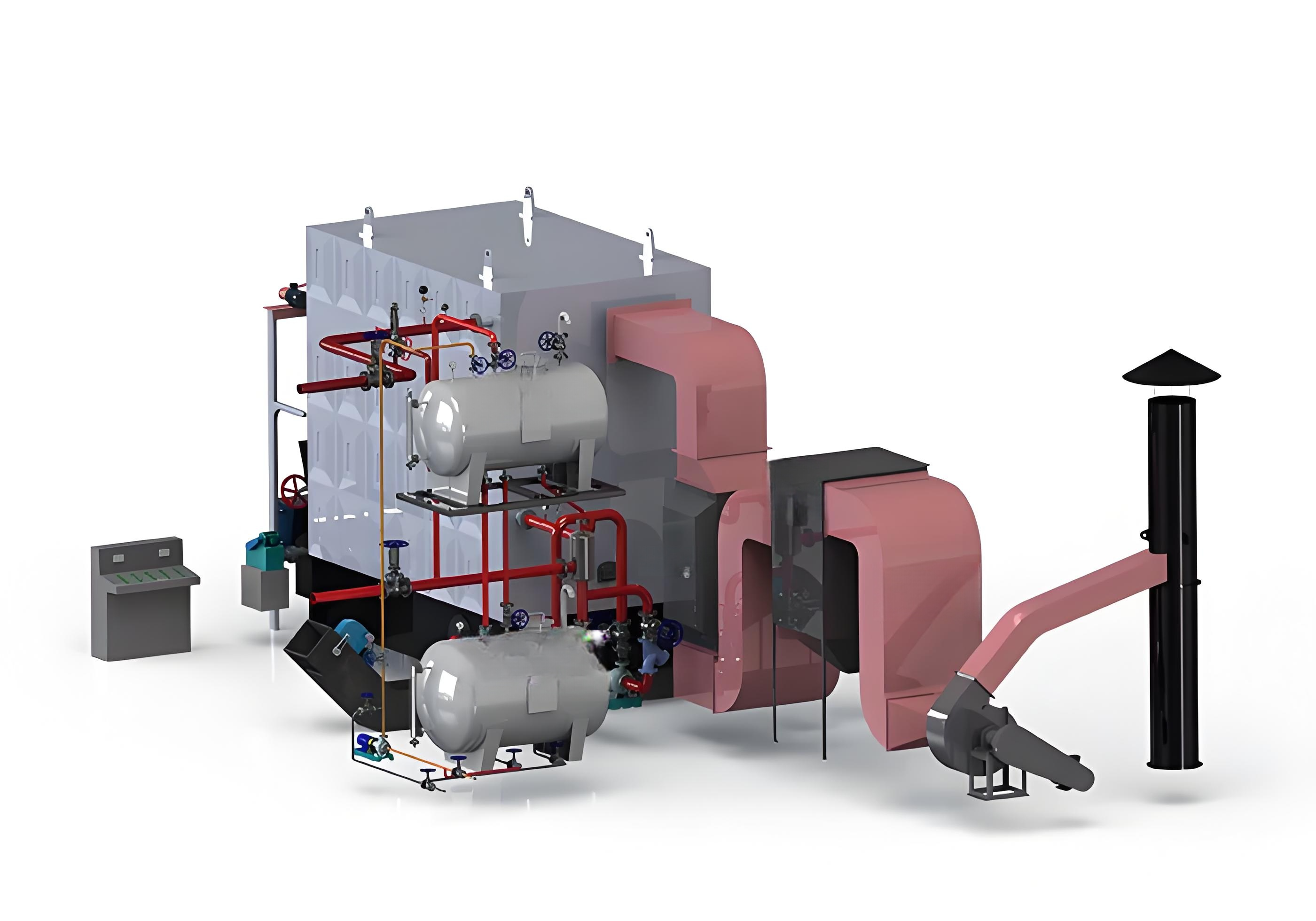

| Boiler Body and Chain Grate

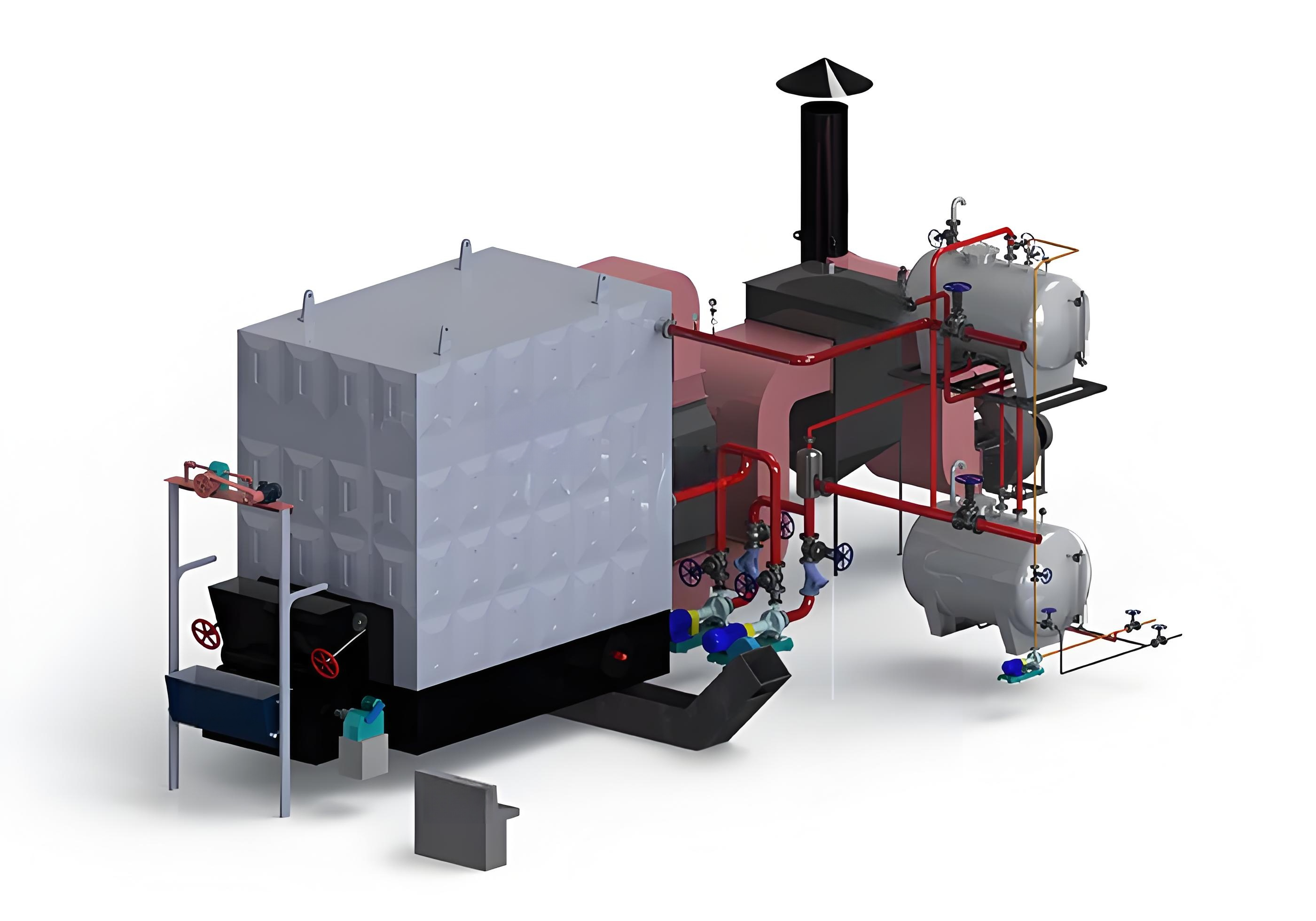

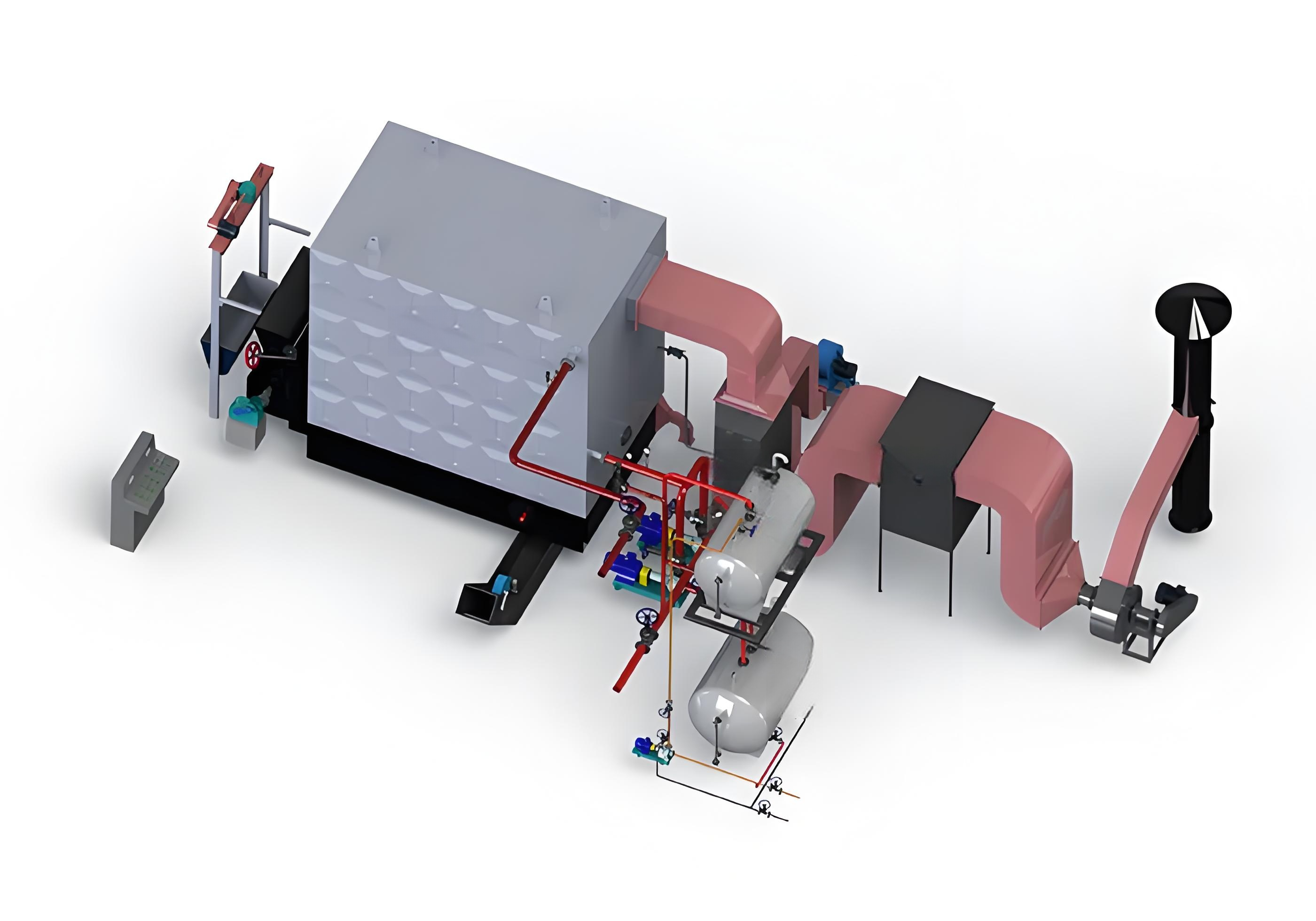

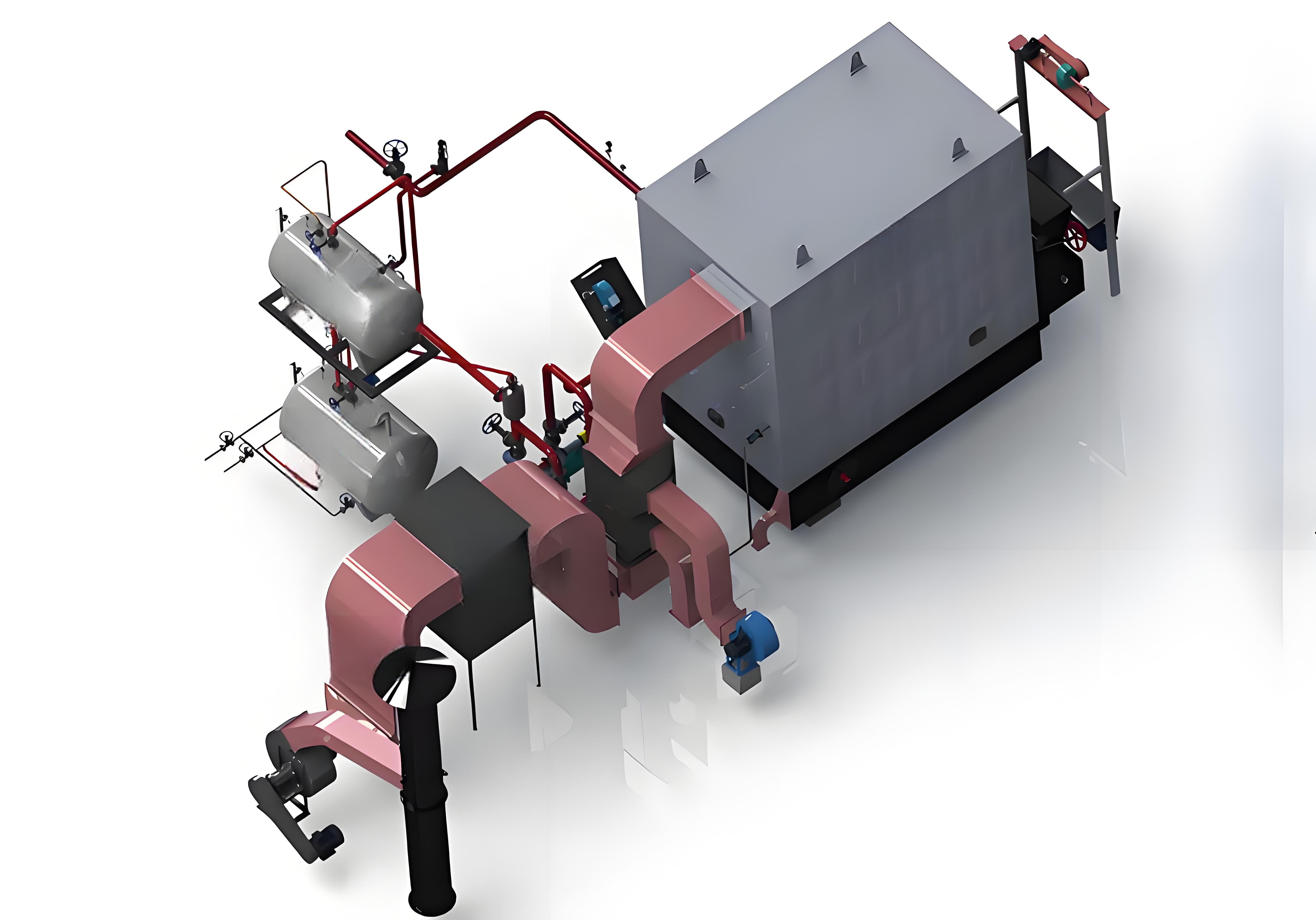

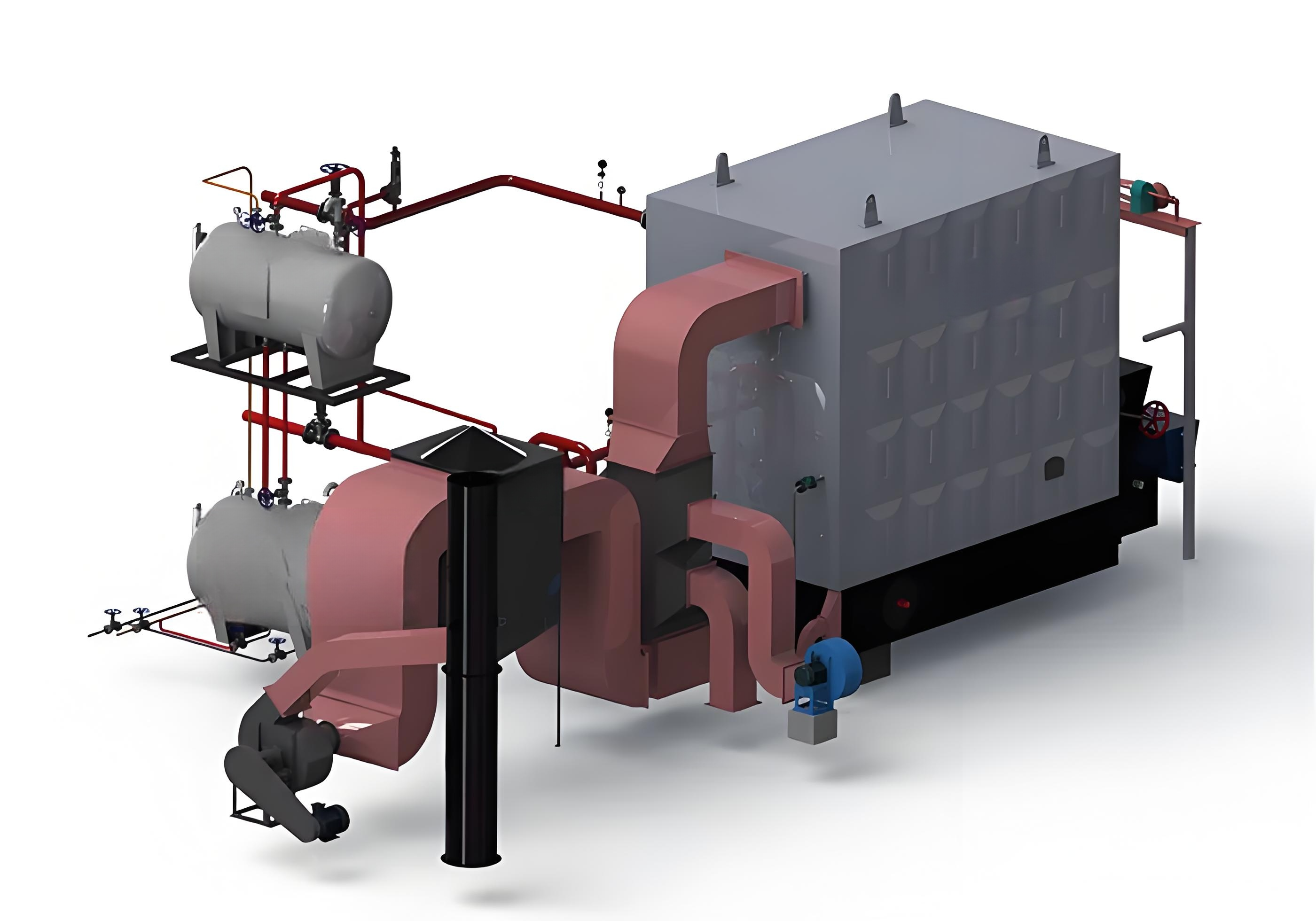

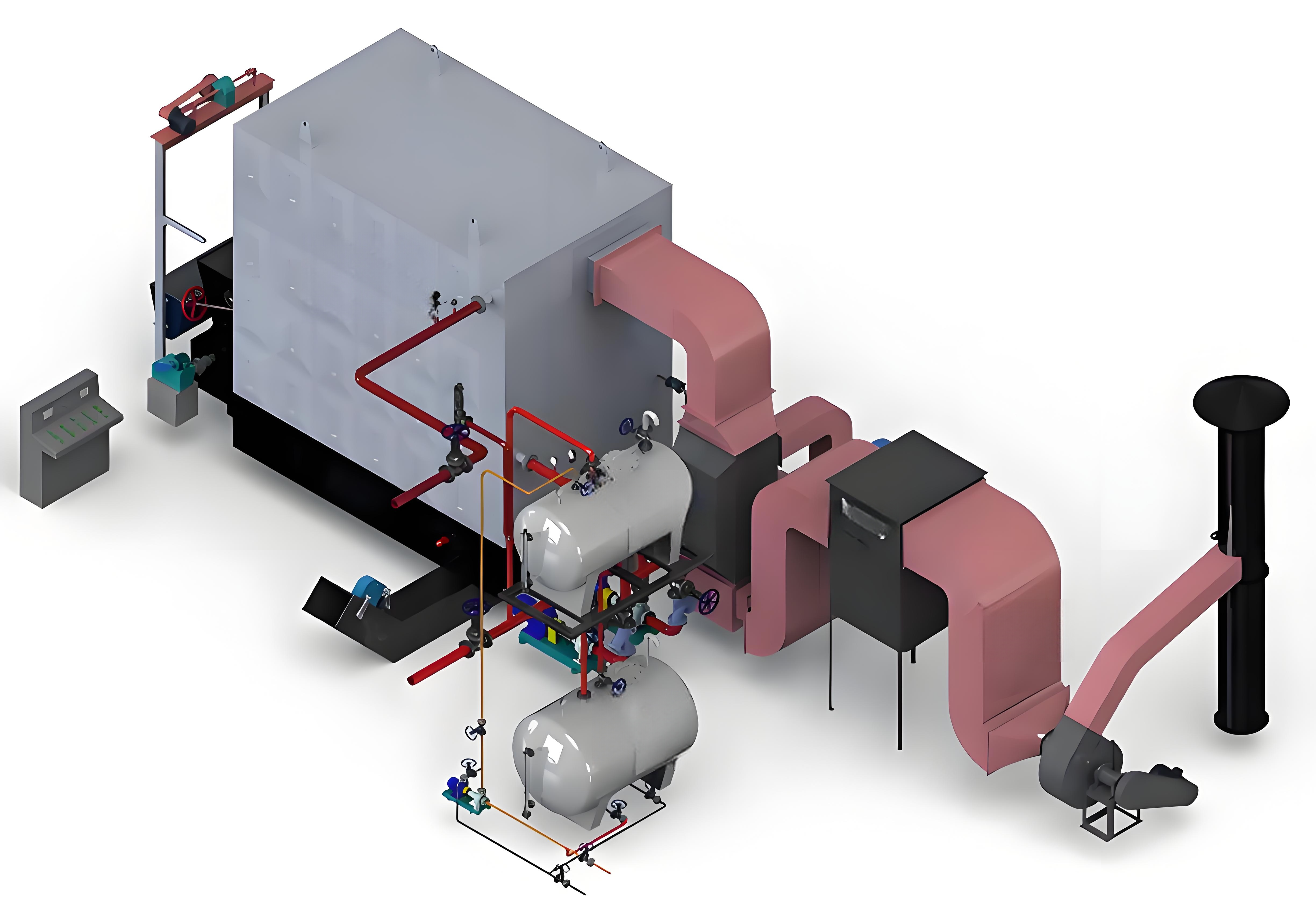

The horizontal chain grate coal-fired thermal oil boiler consists of an upper body and a lower grate. It is designed for easy and quick installation—simply joining the two sections together—significantly reducing installation time and cost for users. |
| The boiler grate is manufactured from high-quality medium/high silicon heat-resistant nodular cast iron, making it suitable for various low-grade fuels such as bituminous coal, lignite, lean coal, and biomass. It offers excellent resistance to burning and oxidation, ensuring long service life. |

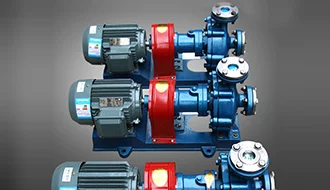

| Thermal Oil Boiler Circulating Oil Pump
The system is equipped with a high-quality circulating oil pump that offers outstanding high-temperature and corrosion resistance. It consumes less power, has a low failure rate, and ensures stable, leak-free long-term operation. |

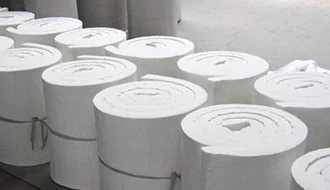

| Aluminum Silicate Insulation Material
Special aluminum silicate insulation material and advanced construction techniques are used to minimize heat loss. An air preheater is installed at the tail to recover waste heat from flue gas, reducing exhaust temperature and enhancing overall thermal efficiency. |

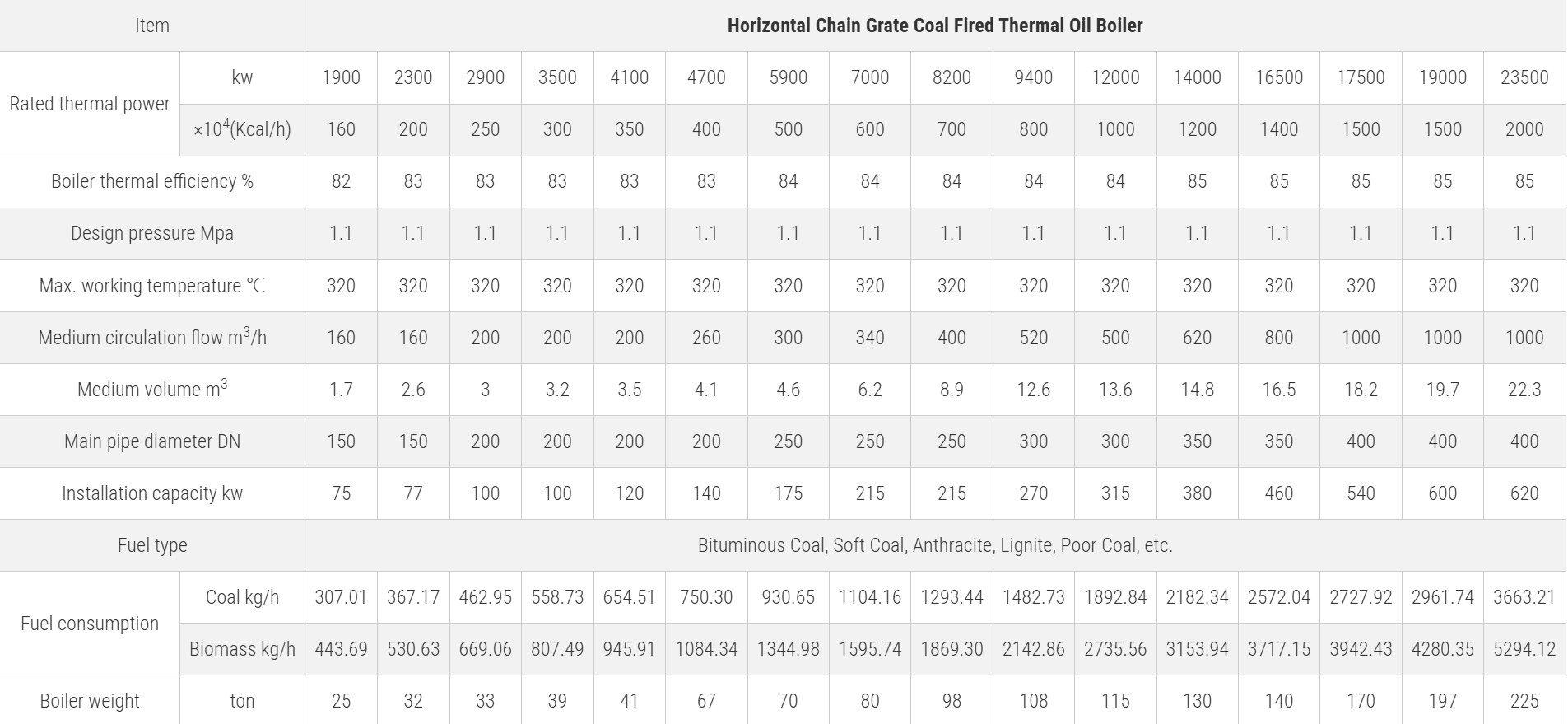

Technical Parameters Find the capacity of the coal fired steam boiler you want and check other parameters of the boiler as a reference.
No. | Item | Example/Issuer | Qty | Unit | 1 | Boiler Drawings | General Drawing, Boiler Proper Drawing, PID (Pipes, Instruments & Valves) Drawing, Foundation Drawing, Boiler Room Design Drawing. | 1 | Set | 2 | Boiler Quality Certificate | Issued by the boiler inspection department of China government. | 1 | Set | 3 | Certificate of Origin | Such as CO, Form E, Form F, Form A, etc. | 1 | Set | 4 | Boiler Thermodynamic Calculation Book | Issued by the boiler supplier. | 1 | Set | 5 | Boiler Strength Calculation Book | Issued by the boiler supplier. | 1 | Set | 6 | Installation & Operation Instruction | Issued by the boiler supplier. | 1 | Set |
|
|
